T24997-SS | Delta

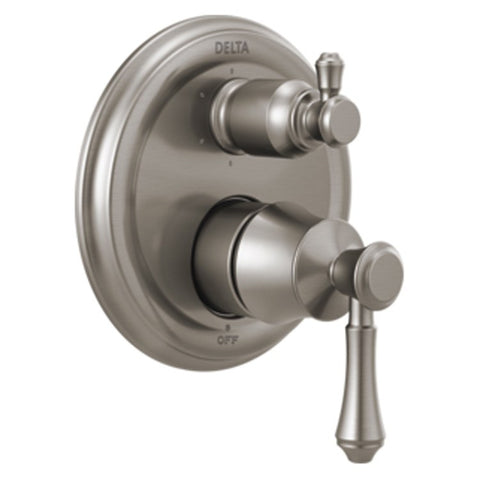

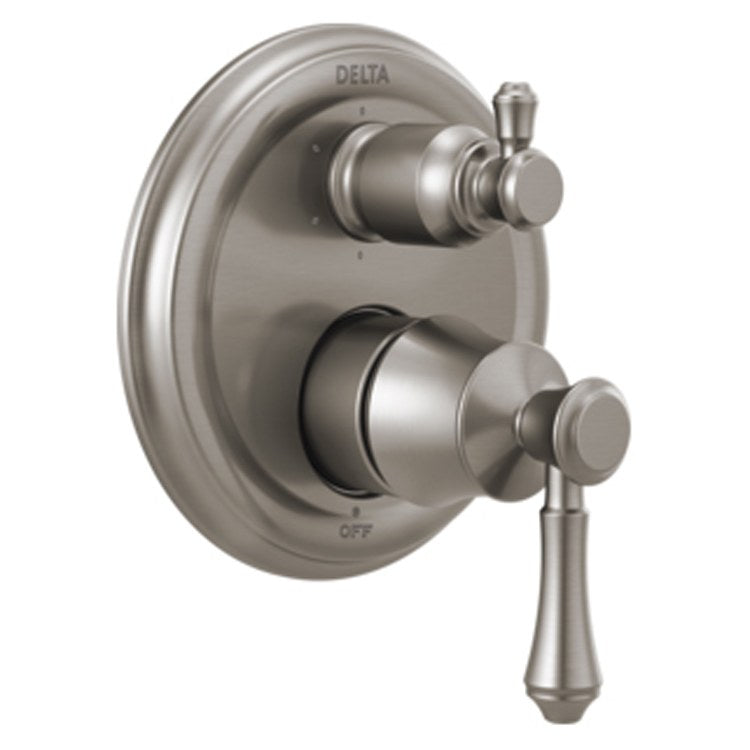

Traditional Monitor 14 Series Pressure Balance Valve Trim with Six-Function Diverter
$592.36
$769.30
Save $176.94
select Finish: Brilliance Stainless
Please Wait...
On Display Showrooms
Other branches
Please enable location services to view showrooms.
Description
Classic lines and fine detailing give the Traditional collection a timeless style for any bathroom. This Traditional Monitor 14 Series valve trim features a main control that utilizes a single-function pressure balanced cartridge. Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
The top handle controls six diverter functions, and the bottom handle controls on/off and temperature with a 120-degree maximum rotation. The 7" diameter escutcheon features red/blue indicator markings. Standard installation allows up to 1-1/8" finished wall thickness. For thick wall installations up to 2-1/8" thick, order RP90542 sold separately.
The top handle controls six diverter functions, and the bottom handle controls on/off and temperature with a 120-degree maximum rotation. The 7" diameter escutcheon features red/blue indicator markings. Standard installation allows up to 1-1/8" finished wall thickness. For thick wall installations up to 2-1/8" thick, order RP90542 sold separately.
- Six-function diverter for three individual positions, three shared positions
- For three individual functions, no shared functions, order additional RP71720
- Requires MultiChoice universal rough R22000 series sold separately
- Includes cartridges
- Not recommended for tub spout applications
Documents & Specifications
| Product type | Traditional with 6 Setting Integrated Diverter |
|---|---|
| Number of handles | 2 |
| Handle type | Lever |
| Finish | Brilliance Stainless |
| Ada compliant | Yes |
| Includes | Escutcheon and Handle |
| Used on | MultiChoice Universal Rough-In Valve R22000 Series |
| Length | 6-1/4 IN |
| Width | 7 IN |
| Height | 8-1/5 IN |
| Style | Traditional |
| Color family | Stainless Steel |
| Collection | Cassidy Monitor 14 |
| Brand | Delta |
Specification Sheet
