Moen S3102

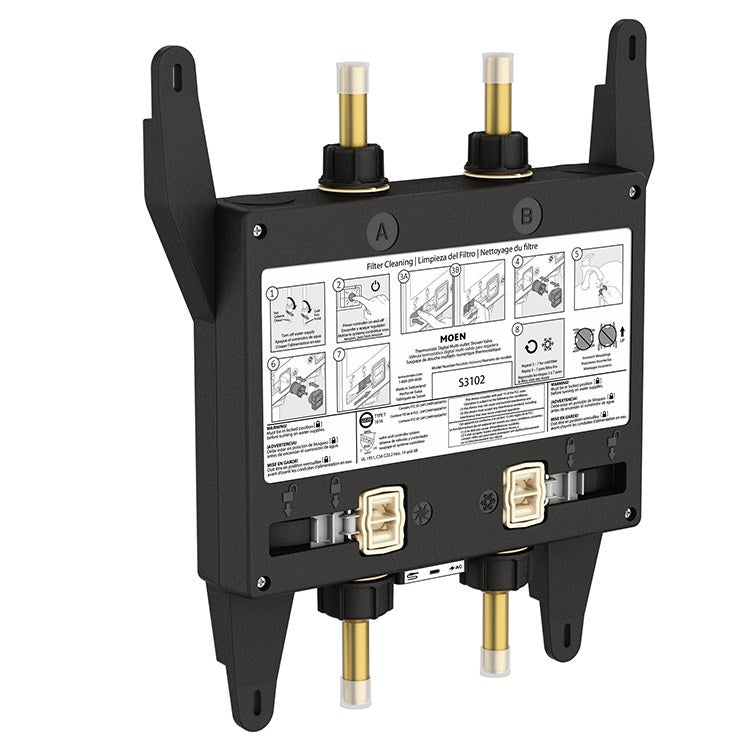

U by Moen Two-Outlet Digital Thermostatic Shower Rough-In Valve
$723.70
$933.80
Save $210.10
On Display Showrooms
Please Wait...
On Display Showrooms
Other branches
Please enable location services to view showrooms.
Description
This U by Moen two-outlet digital thermostatic shower rough-in valve is designed for use with the TS3302TB digital shower controller. Allows you to customize and control the temperature, time, and flow of your shower. A smart phone app available for iOS and Android provides increased user personalization of the shower.
The valve is set with a factory default maximum temperature setting of 115 degrees F (46 degrees C) with adjustability through the app up to 120 degrees F (49 degrees C). Designed to deliver 9 gpm (34 L/min) at 45 psi unrestricted total flow through all outlets and 6 gpm (22.7 L/min) at 45 psi unrestricted on any one outlet. Flow rates are applicable when installed on a pressure balanced dedicated supply.
The valve is set with a factory default maximum temperature setting of 115 degrees F (46 degrees C) with adjustability through the app up to 120 degrees F (49 degrees C). Designed to deliver 9 gpm (34 L/min) at 45 psi unrestricted total flow through all outlets and 6 gpm (22.7 L/min) at 45 psi unrestricted on any one outlet. Flow rates are applicable when installed on a pressure balanced dedicated supply.
- Must be used with the TS3302TB digital shower controller
- 1/2" CC inlet connections and 1/2" CC outlet connections
- Valve must be installed in an area that has an access panel
- GFCI electrical outlet with continuous power (120V/60Hz) required
- Water supply minimum incoming pressure of 20 psi
specifications
| Product type | Digital Thermostatic 2 Port |
|---|---|
| Size | 1/2 IN |
| End connection | CC |
| Flow rate | 9.0 GPM |
| Used on | TS3302TB |
| Length | 17-1/4 IN |
| Width | 17-1/4 IN |
| Height | 2-4/5 IN |
| Style | Modern |
| Collection | U by Moen |
| Brand | Moen |
Specification Sheet
